Crop Row Detection, Segmentation to Navigation

A hybrid perception-and-reasoning pipeline that finds the drivable corridor between corn rows from a single camera and turns it into steering output.

Under a closed crop canopy, RTK-GPS drops out and an agricultural robot has to steer from vision alone. This project is a hybrid perception-then-reasoning pipeline for that problem: a U-Net with a ResNet-34 (ImageNet) encoder segments the drivable inter-row corridor from a forward-facing RGB image, a transparent five-step geometric refinement layer turns that mask into left, right, and centerline polynomials, and a final stage converts the centerline into navigation outputs (heading angle, curvature, and a steering decision). Built on a single-session corn-field subset of a published row-detection corpus.

Left: raw input from a ground-level camera in a corn row. Right: detected row boundaries (cyan) and the centerline (yellow) the navigation stage consumes.

At a glance


Role Sole author; full pipeline design, implementation, and analysis
Task Vision-only row following under canopy, where GPS is unreliable
Perception U-Net + ResNet-34 (ImageNet) encoder, binary corridor segmentation
Reasoning 5-step geometric refinement → left/right/centerline polynomials
Output Heading angle, curvature, discrete steering decision
Compute RTX 3070 (8 GB), mixed precision
Results Mean IoU 0.82, F1 0.88 at native resolution; centerline error <1% of image width

Why it matters

Under-canopy robots are how you get plant-level data, like stem width, early disease, and lodging, that drones overhead can’t see and tractors can’t reach without crushing the crop. The blocker is navigation: once the canopy closes, GPS multipath makes it unreliable, and repeating rows defeat the loop-closure that SLAM depends on. A camera that estimates the corridor and hands a controller a clean centerline is a practical way through.

Two findings worth keeping

The headline IoU hides a bimodal distribution. Mean IoU is 0.82, but the median is 0.885 and a small tail of near-zero frames drags the average down. The model isn’t uniformly mediocre, it’s mostly right and occasionally catastrophically wrong, almost always by hallucinating a corridor into dense foliage (a false positive). That’s the expensive failure: a false positive steers into a crop row, while a false negative just slows the robot down. The practical takeaway is that a deployed system needs a confidence check, not blind trust in every mask.

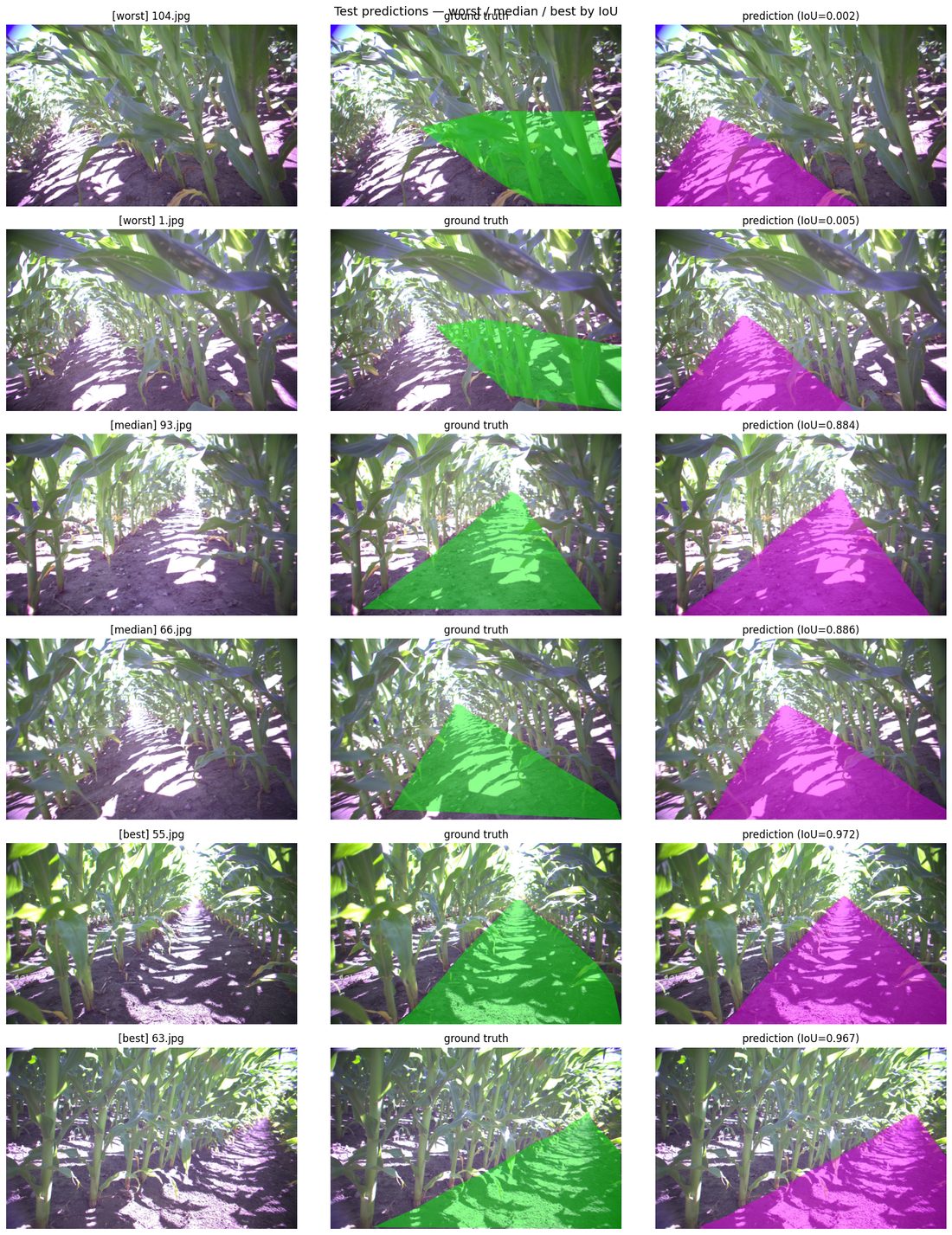

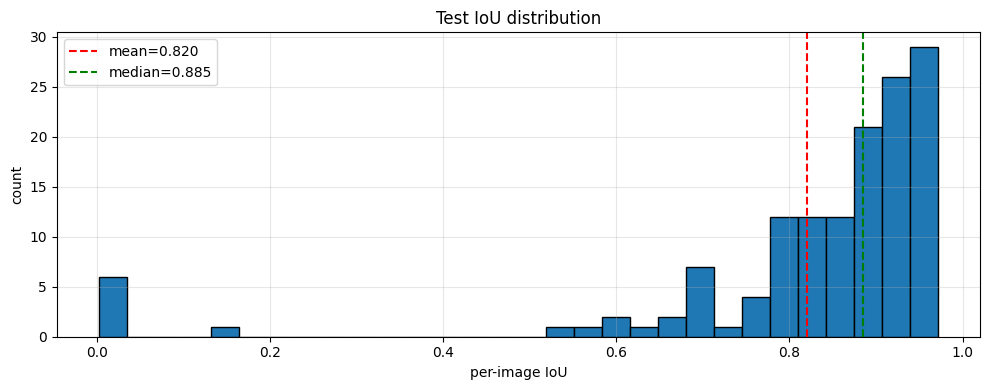

Left: the strongly bimodal per-image IoU distribution, the central interpretability result. Right: worst (top), median (middle), and best (bottom) test predictions against ground truth.

The refinement layer earns its keep on the worst cases, not the average. Ablating the five heuristics one at a time shows they cut mean centerline error by only ~7.5%, because the U-Net already produces clean masks most of the time. But on the hardest frames the same layer reduces error by an order of magnitude, e.g. from 93.9 px to 8.5 px. It functions as a safety net for the long tail rather than an average-case win.

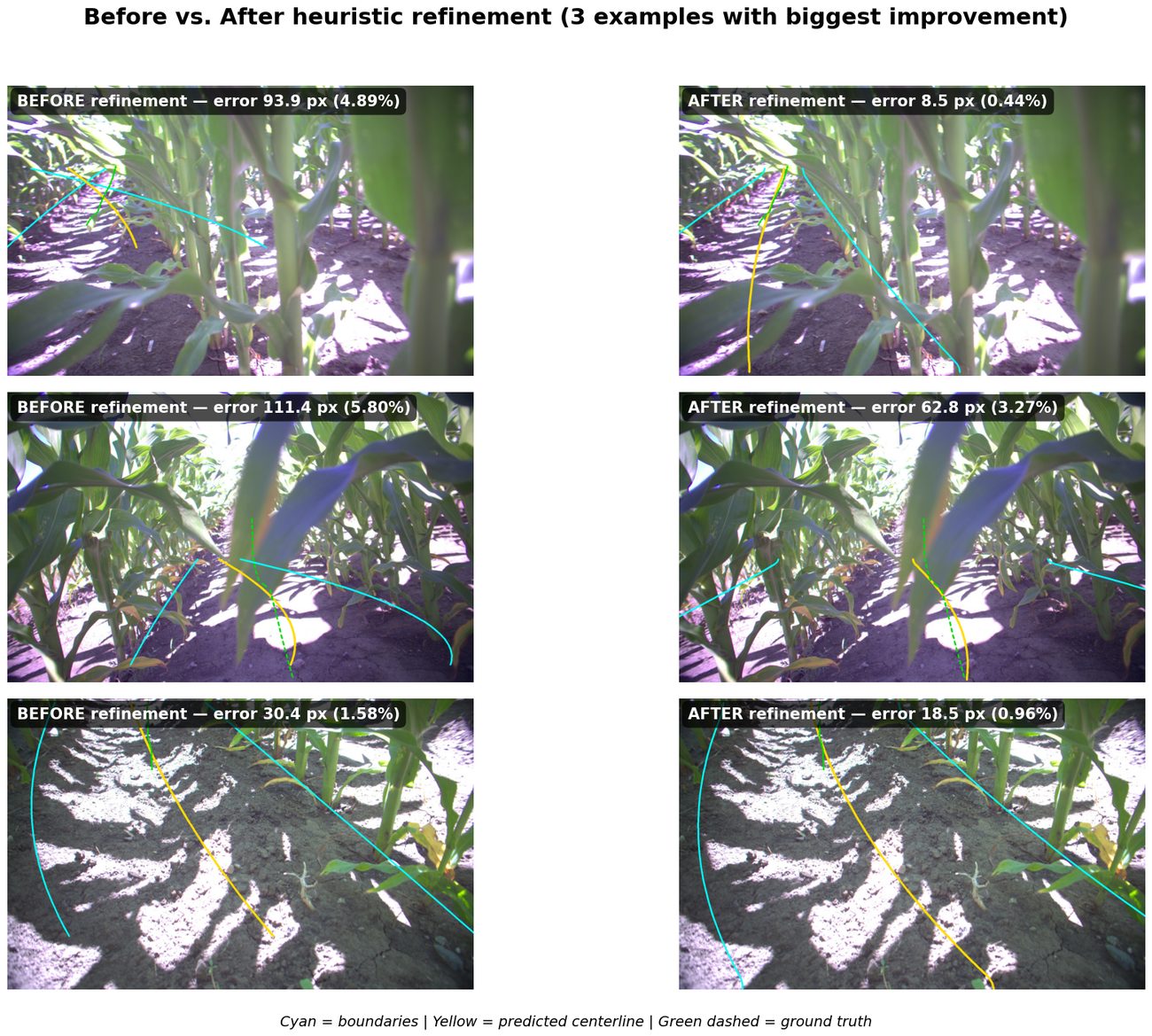

Before/after the geometric refinement layer on the three frames it helps most: noisy raw boundaries (cyan) and centerline (yellow) snap back toward ground truth (green dashed).

Limitation

The reported numbers will overestimate performance in a different field or season. This is the standard domain-shift problem in row detection, and the natural next steps are evaluation on a held-out video, a precision-biased asymmetric loss to suppress the false-positive failures, and a per-frame confidence head so a controller can refuse low-confidence predictions.

What this project demonstrates

  • Deep segmentation under real constraints. Transfer learning and architecture choices made deliberately for a small, single-video dataset on an 8 GB GPU.
  • Perception plus interpretable reasoning. A transparent geometric layer that can be inspected, ablated, and tuned independently of the network.
  • Honest evaluation. Distribution-level analysis that surfaces failure structure a headline metric would hide, plus explicit reasoning about asymmetric error costs.
  • Path to control. Segmentation output carried all the way to heading, curvature, and steering decisions a row-following controller can use.
