3D-Printable Bonded Magnetic Composite

A co-authored study on fabricating a bonded magnetic composite that can be 3D printed. Anisotropic strontium-ferrite powder is compounded into a polyamide 4.6 binder by twin-screw extrusion to produce a 1.75 mm monofilament suitable for fused-filament fabrication, then characterized across microstructure, thermal behavior, and magnetic performance. The motivation is a cheaper, more flexible route to magnetic components, like small motors, generators, and Halbach arrays for MRI, than the expensive tooling that injection-molded or sintered magnets require.

My role: co-author — twin screw extrusion, data analysis, manuscript

The twin-screw compounding line: polyamide 4.6 pellets and strontium-ferrite powder are fed, melt-compounded across eight heating zones (290–330 °C), and drawn into a 1.75 mm filament for FFF printing.

At a glance


Materials	Anisotropic strontium-ferrite (hexaferrite) powder + polyamide 4.6 binder
Loadings	20 wt% and 40 wt% magnetic filler
Process	Twin-screw compounding → 1.75 ± 0.05 mm monofilament for FFF 3D printing
Characterization	SEM (microstructure), TGA + DSC (thermal), VSM (magnetic)
Key result	Flow-induced magnetic anisotropy with an easy axis perpendicular to the extrusion direction
Application	Feedstock for magnetic-field-assisted additive manufacturing of magnetic devices

What the characterization showed

Microstructure. SEM confirmed the ferrite platelets stayed evenly dispersed in the nylon matrix with no appreciable agglomeration at either loading, which matters because clustering would form complex magnetic domains and weaken the composite’s magnetic response.

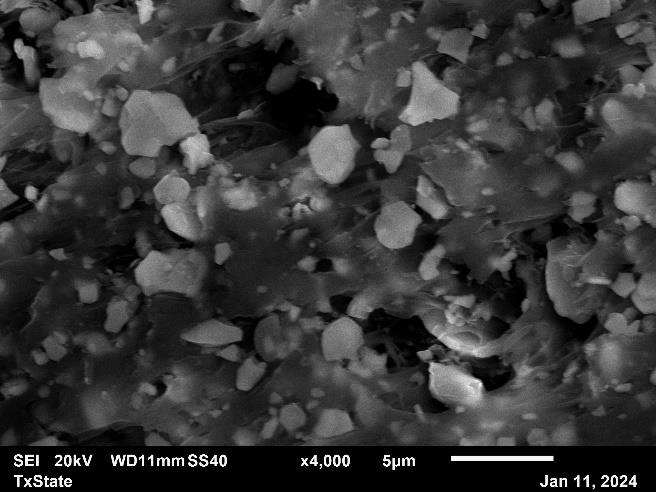

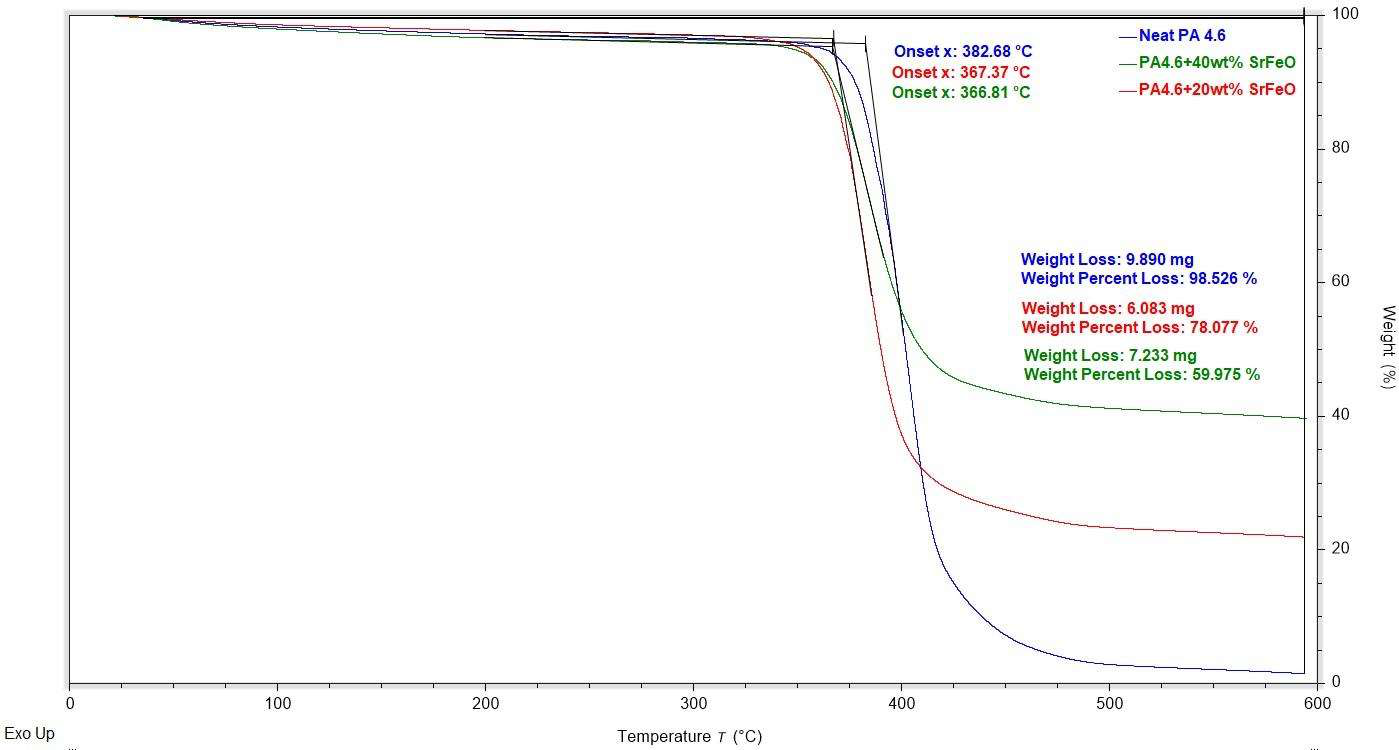

Left: SEM of the 40 wt% composite showing well-dispersed ferrite platelets. Right: TGA mass-loss curves, which put the measured filler fractions (21.9% and 40.0%) within ±3% of target.

Thermal behavior. The polyamide 4.6 melting point (~290 °C) was essentially unchanged by adding filler, so the composite stays printable and thermally robust. Crystallinity rose with loading (70.5% → 79.9% → 88% for neat, 20 wt%, and 40 wt%), consistent with the ferrite particles acting as nucleation sites. TGA also showed measured filler fractions within ±3% of target, evidence the extrusion process was well optimized.

Magnetic performance. Field-angle hysteresis measurements revealed flow-induced anisotropy: the easy axis (where magnetization is most favorable) lies perpendicular to the extrusion direction, attributed to shear flow aligning the platelets near the extruder nozzle. The S-value (squareness, Mr/Ms) peaks at the 90° and 270° field angles, confirming the two easy directions. This is the practically useful finding, because printing this filament in an applied magnetic field could lock in and amplify that alignment to make stronger magnetic parts.

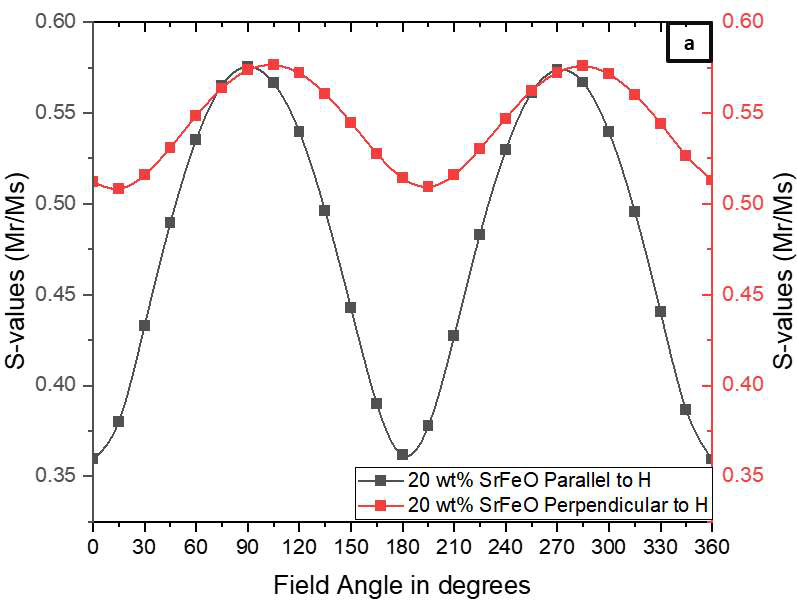

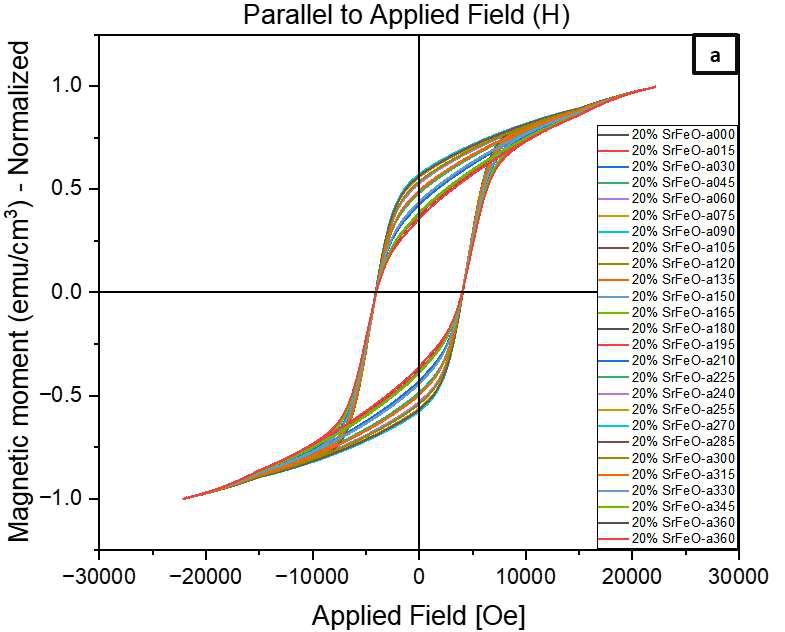

Left: normalized hysteresis loops across field angles for the 20 wt% composite. Right: S-values (Mr/Ms) vs field angle, peaking near 90°/270° and marking the easy axis.

What this project demonstrates

Composite fabrication. Melt-compounding a ceramic magnetic filler into a thermoplastic binder to make printable feedstock.
Multi-technique characterization. SEM, TGA/DSC, and VSM combined to connect microstructure, thermal stability, and magnetic behavior.
Process–structure–property reasoning. Linking extrusion shear flow to platelet alignment, and that alignment to measurable magnetic anisotropy.
